Seizer Coating Machines Plant And Machinery For Coated Abrasive, Special Purpose Machine

We are Manufacturer, Supplier Of Seizer Coating Machines, Plant And Machinery For Coated Abrasive, Special Purpose Machine, Buffing And Polishing Machines, Converter Of Abrasive Flap Wheels And Belts. Abrasive Jumbo Roll Slitting Machine, Cut-To-Length Machine, Skiving Machine, Belt Joint Press Machine, Abrasive Belt Slitter, Coated Abrasive Plant & Machinery, Coated Abrasive Conversion Machine, Sheet Cutting Machine Non-Woven Abrasive Conversion Machine, Resin Coating Machine, Rewinding & Unwinding Machine, Hot Air Generating System, Ovens, Buffing & Polishing Machines, Centerless Buffing Machine.

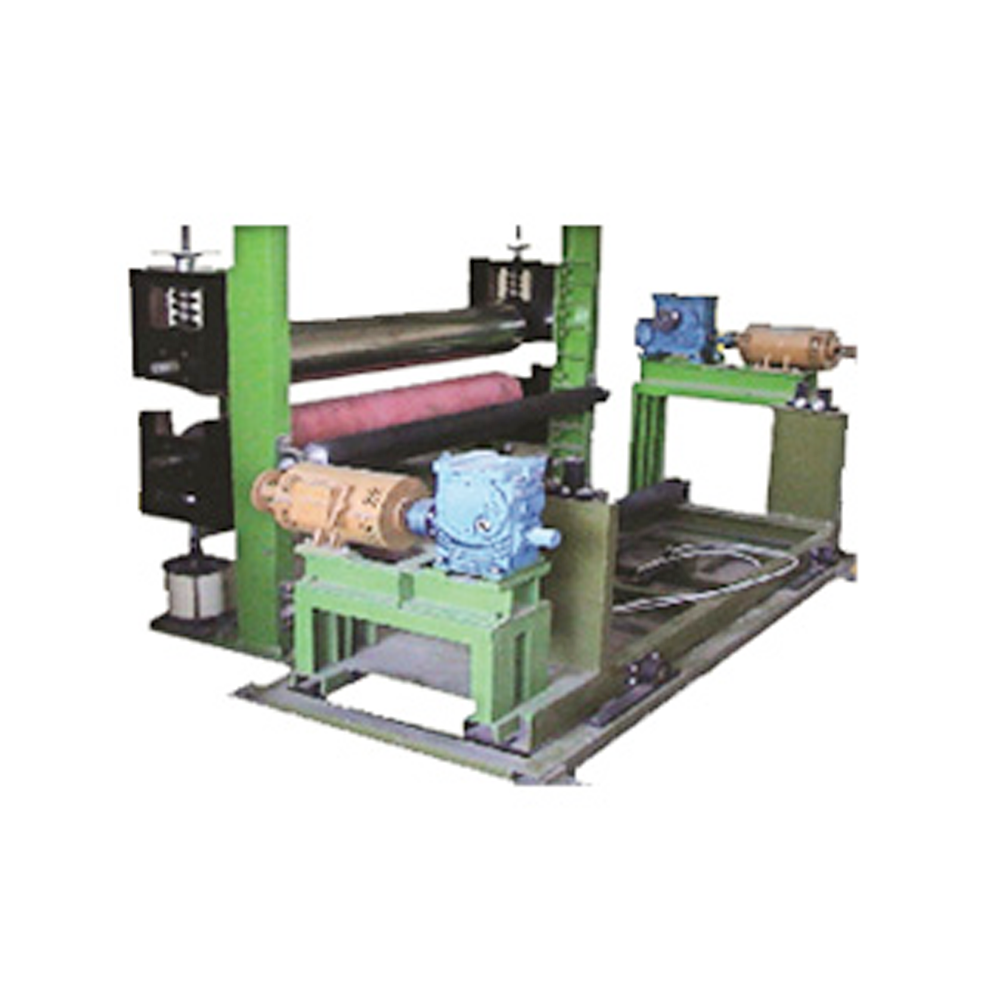

Seizer Coating Machines

Model No.: SCM 01

This machine is used coating and controlling the glue/ resin thickness and G.S.M. of the seizer coat.

Features of our Seizer Caoting Machine:

Hydro Pneumatic Web Aligning Unwinding Station with Electronic Tension Control System.

Pneumatic Lifting System of Roll and Resin Tray.

Pneumatic Pressure Control System for Controlling the G.S.M. of Glue/ Resin.

Mechanical Up and Down Fine Adjustment for the Counter Roll.

Leaner Slides for Nip Roll and Counter Roll.

Harden and Grind Hardcrome Plated Counter Roll.

Synthetic Rubber Coated Nip Roll.

Deatachable Resin/ Glue Tray with Electrical Heating System.

Micro Dial Gague for Gap Indication of Nip Counter Roll.

Easy Removing Arrangement for Nip and Counter Roll.

Technical Specification:

Item	Specification
Capacity	Working Width 40 inches (Available in Required Width)
Power	8.5 HP
Drive	D.C. Variable Speed
Mode of Operation	Semi Auto
Approx. Dimensions (L × W × H)	2500 mm × 2400 mm × 1500 mm
