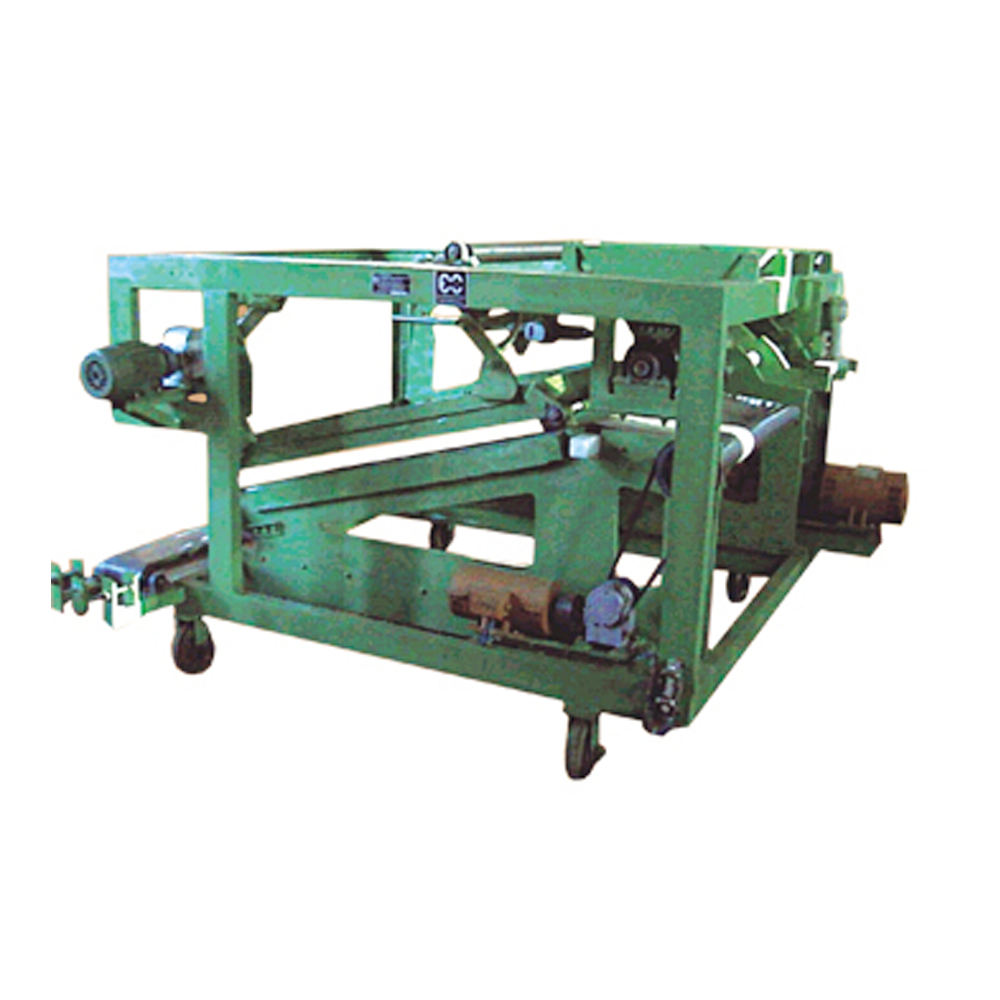

Electrostatic Grain Coating Systems
Model No.: EGC 02
This system mainly used for grain deposition on paper / cloth by Electro coating method, to coat a grain by keeping sharp edge of grain upward, and also to control the grain quantity for close / open coat method.
Features of Multislitting Machine:
The system includes,
Positive & Negative Electrodes.
H.V. Generator.
Control Panel.
A Complete Trolley for Electrodes & Conveyor System.
Grain Hopper with Micro Adjustment & Drive.
Feed Grain Conveyor & Excess Grain Conveyor with Drive & Belts.
Online Gap Control Mechanism.
Technical Specification:
| Item |
Specification |
| Working Width |
40 inches (Available in required width) |
| Power |
5.0 HP |
| Drive |
D.C. Variable Speed |
| Mode of Operation |
Semi Auto |
| Approx. Dimensions (L × W × H) |
2400 mm × 2200 mm × 1500 mm |
