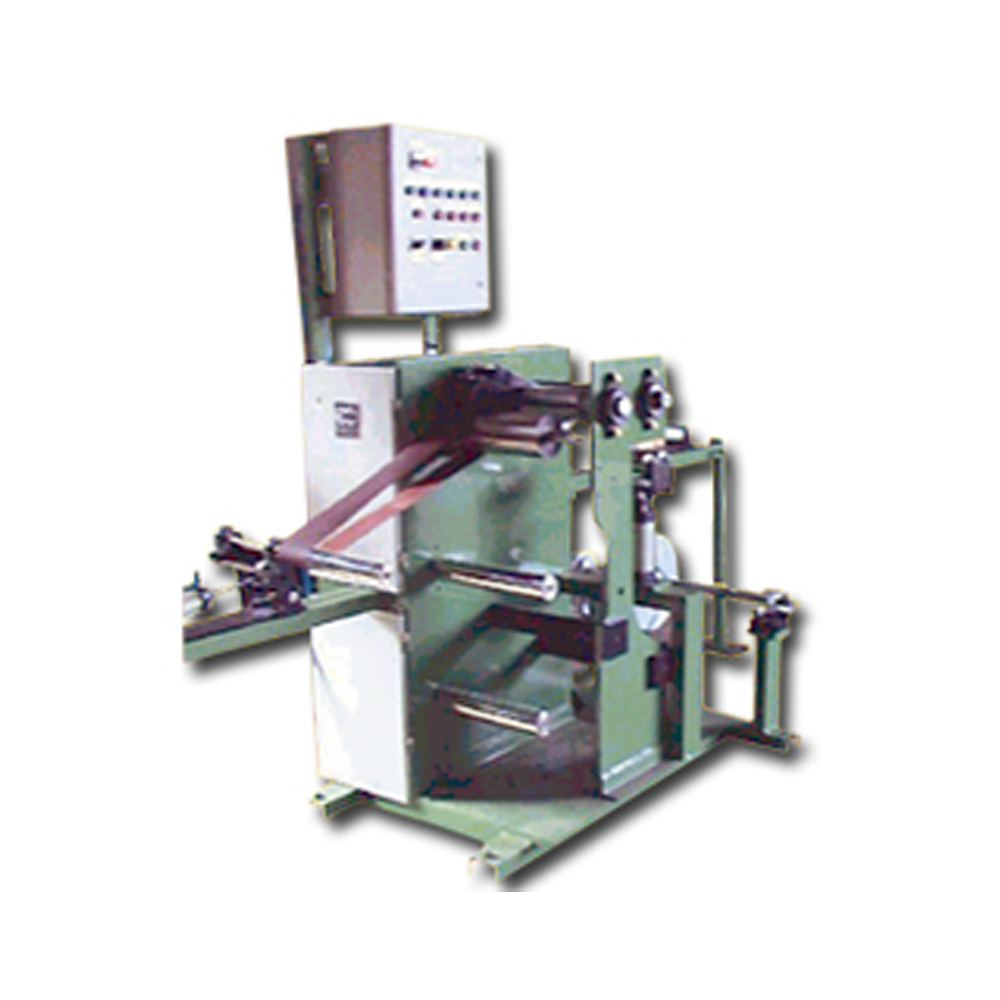

Auto Multislitting Machines
Model No.: MSM 03
Features of Multislitting Machines:
Combination of pneumatic & mechanical ( for fine adjustment ).
Press cutters – 12 Nos. & Cutter holders – 12 Nos.
Clutch mechanical.
Coreless shaft for rewinding.
Mechanical unwinding station for web control.
Pneumatic roll holder for belt tracking up to the 2 Mtrs. For Min. 25mm slit & up to the 1 Mtr. For min. 9mm slit.
Technical Specification:
| Item |
Specification |
| Capacity |
Working Width 300 mm |
| Minimum Width of Slit |
25 mm & 9 mm |
| Power |
1 HP |
| Driver |
A.C. Fixed Speed |
| Mode of Operation |
Manually |
| Approx. Dimensions (L × W × H) |
1200 mm × 800 mm × 1270 mm |
