| Item | Specification |
|---|---|
| Maximum Cutting Width | 300 mm (Blade Length 500 mm) |
| Minimum Cutting Width | 100 mm |
| Minimum Cutting Length | 400 mm |
| Maximum Cutting Length | 3000 mm (Can be extended) |
| Power Required | 0.5 HP |
| Gear Box & Motor | Rotomotive |
| Unwinding Stand Capacity | 500 kg, 100 cm dia., with 2 simple 80 mm dia. hollow shafts |

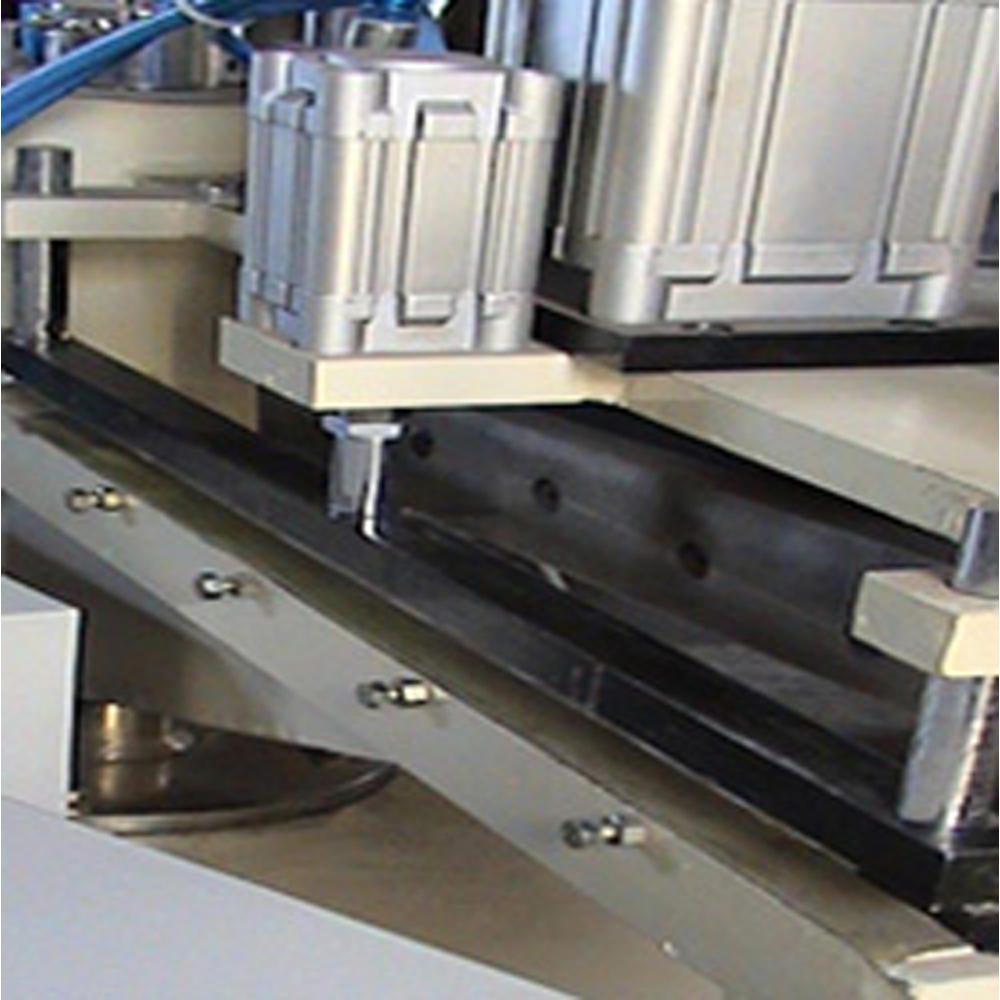

| Cutting System | Pneumatic cylinder for web/paper holding with second cylinder for adjustable cutting pressure |
| Feeding of Roll | Manually |
| Pressure Adjustment | Via pneumatic pressure switch |
| Stroke Adjustment | Fixed stroke length |
| Stroke Operation | Foot switch with adjustable timer |
| Table Length | Up to 3 meters with mm scale mark |
| Stoppage Angle | 45° / 67° |
| Safety Guard | Provided at cutting area with electrical interlock |
| Harden Blade | Supplied with one spare set |
| Safety Interlocks | Interlock switch at all door openings |
| Pneumatic | All cylinders & controls are Data make |
| Control Panel |
Electrical control panel with 32A MCCB switch, main/control contactors, 220V supply via 440/220V transformer |
Luminous Stop-Start Buttons Will Be Provided For All The Motors To Operate Independently Or Simultaneously.
Panel Will Be Provided With Extra Space For Accommodating Additional 2nos. Power & 2 Nos. Control Contactor.
Separate Terminal Block Of Suitable Will Be Provided For Control & Power Circuits. Suitable Cooling System By Providing Cooling Fans. Panel Will Be Siemens Gray Colour Powder
