Abrasive Belt Joint Press

  • Home
  • Abrasive Belt Joint Press

We are Manufacturer, Supplier Of Hot Air Generators, Plant And Machinery For Coated Abrasive, Special Purpose Machine, Buffing And Polishing Machines, Converter Of Abrasive Flap Wheels And Belts. Abrasive Jumbo Roll Slitting Machine, Cut-To-Length Machine, Skiving Machine, Belt Joint Press Machine, Abrasive Belt Slitter, Coated Abrasive Plant & Machinery, Coated Abrasive Conversion Machine, Sheet Cutting Machine Non-Woven Abrasive Conversion Machine, Resin Coating Machine, Rewinding & Unwinding Machine, Hot Air Generating System, Ovens, Buffing & Polishing Machines, Centerless Buffing Machine.

Fiber Laser Cutting Machines

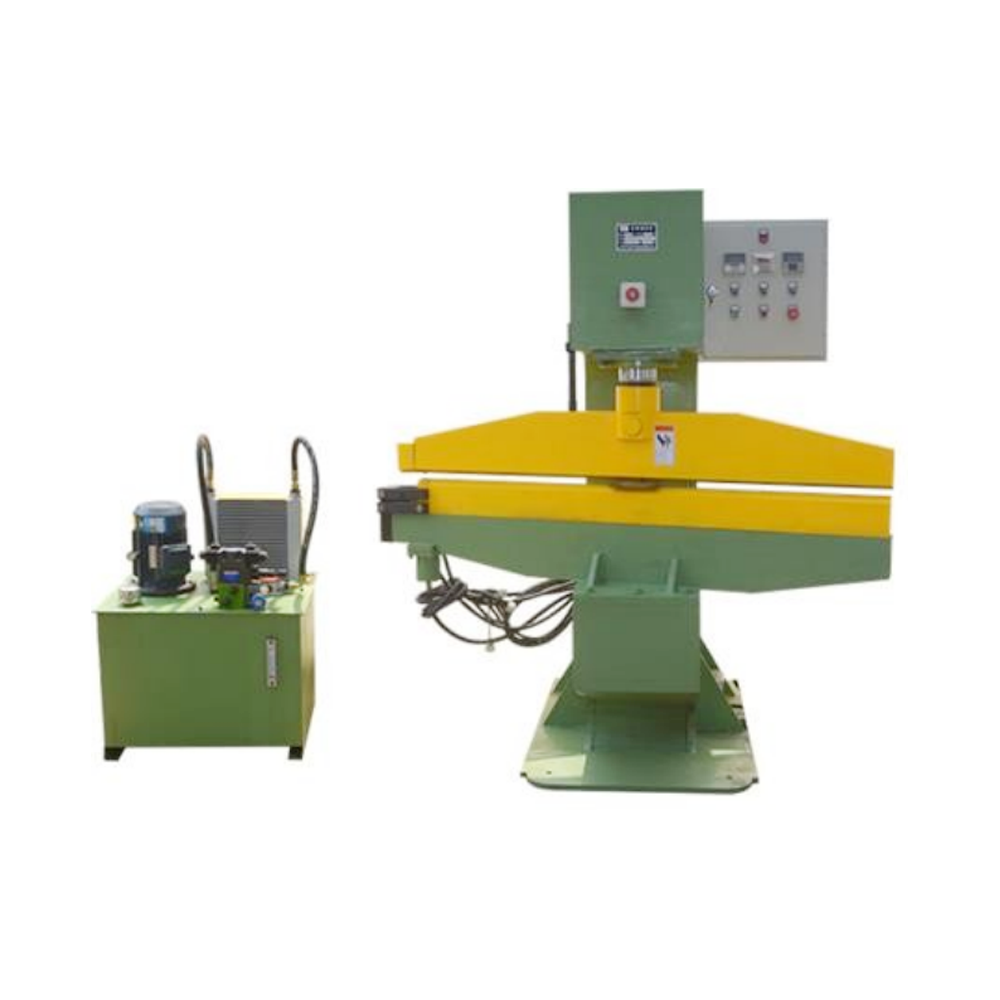

Abrasive Belt Joint Press
Model No.: MM-15T-YJ
Advantages:
This machine is mainly for narrow abrasive belt press.
This machine can be customized as your needed. 25T & 40T are available.
Item Specification Adjustable
Press type Hydraulic press
Pressure 15T ✔
Active length 450mm ✔
Temperature 20°-60° ✔
Press time 1-99s ✔
Power 4KW

Fiber Laser Cutting Machines

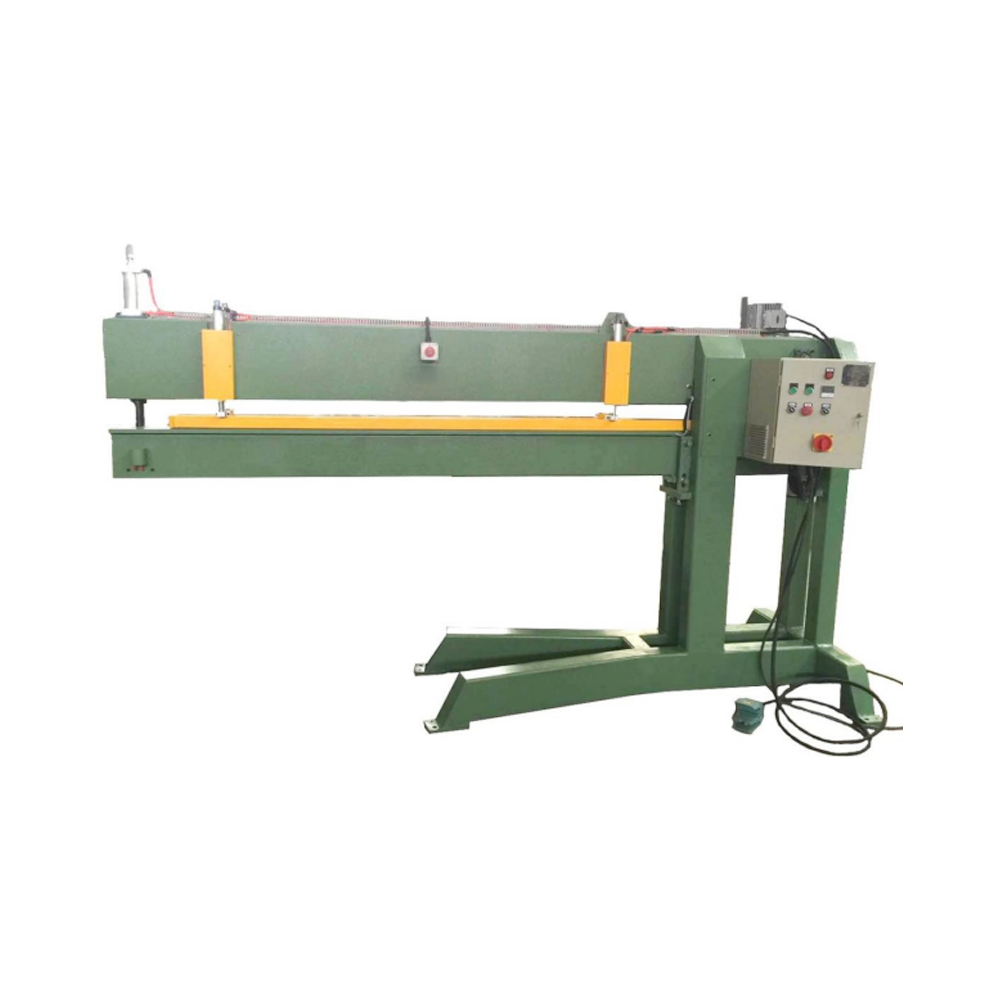

Abrasive Belt Joint Press
Model No.: MM-40T-YJ
Advantages:
This machine is mainly for wide abrasive belt press.
This machine can be customized as your needed. 15T & 25T are available.
Item Specification Adjustable
Press type Hydraulic press
Pressure 40T ✔
Active width 1600mm ✔
Temperature 20°-60° ✔
Press time 1-99s ✔
Power 5KW

Fiber Laser Cutting Machines

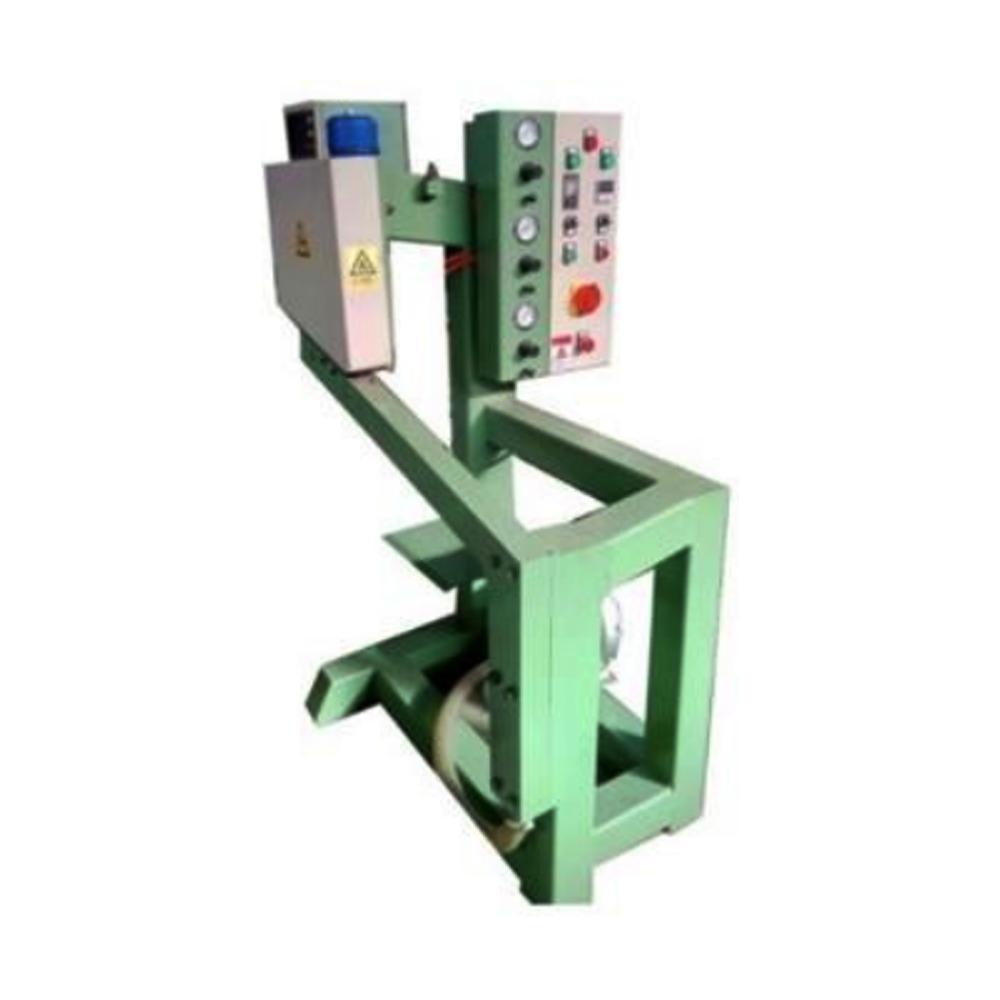

Abrasive Belt Joint Press
Model No.: MM-400-YJ
Advantages:
This belt rolling press machine used for up to 400mm width belt joint press
High efficiency& more convenient & Easy operation
Item Specification Adjustable
Press type Roller press
Max. width 400mm ✔
Pressure 200Kgf
Speed 30-200mm/s ✔
Voltage 220V ✔
Power 1KW

Fiber Laser Cutting Machines
Abrasive Belt Joint Press
Model No.: MM-1800-YJ
Advantages:
This belt rolling press machine used for up to 1800mm width belt joint press
You can set up the press width by setting the rolling press time.
Max. width up to 1800mm, 2800 is also available.
Item Specification Adjustable
Press type Roller press
Max. width 1800mm ✔
Temperature range 20-60 ✔
Pressure 0.7Mpa
Power 1.75KW
