Hot Air Generators

  • Home
  • Hot Air Generators

We are Manufacturer, Supplier Of Hot Air Generators, Plant And Machinery For Coated Abrasive, Special Purpose Machine, Buffing And Polishing Machines, Converter Of Abrasive Flap Wheels And Belts. Abrasive Jumbo Roll Slitting Machine, Cut-To-Length Machine, Skiving Machine, Belt Joint Press Machine, Abrasive Belt Slitter, Coated Abrasive Plant & Machinery, Coated Abrasive Conversion Machine, Sheet Cutting Machine Non-Woven Abrasive Conversion Machine, Resin Coating Machine, Rewinding & Unwinding Machine, Hot Air Generating System, Ovens, Buffing & Polishing Machines, Centerless Buffing Machine.

Fiber Laser Cutting Machines

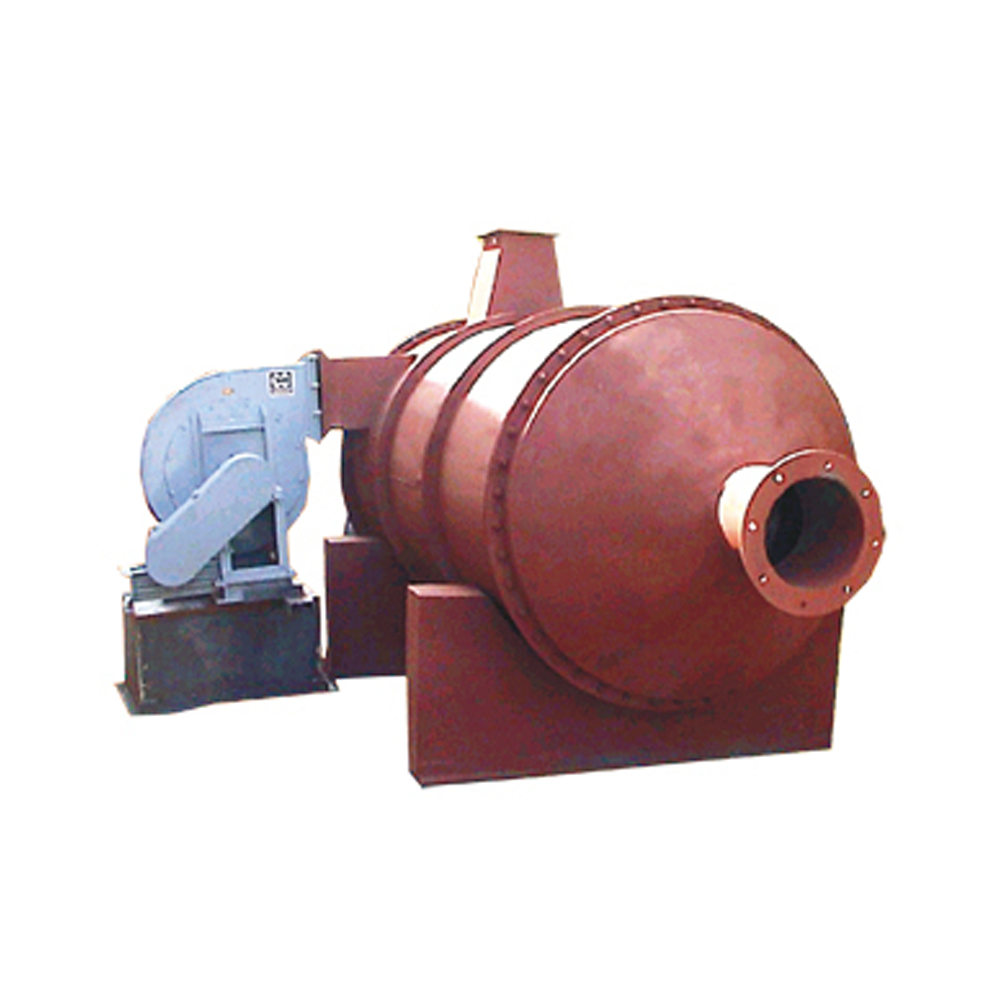

Hot Air Generators
Model No.: HAG 01
Features of our Hot Air Generators:
Parallel Connection Can Be Possible.
Bigger Cap. Available.
No Need Of Chimney.
Wood / Gas Fired Also Available.
Used As A Dryer.
Low Electric Consumption.
Technical Specification:
Item Specification
Capacity Capable of 150°C temperature for volume of 4m × 5m × 35m
Power 2.25 HP
Burner Capacity 20 Ltrs. (Italian make)
Mode of Operation Semi Auto
Approx. Dimensions (L × W × H) 3000 mm × 1500 mm × 1500 mm
Temperature Rising Time Minimum 4 hours to reach 150°C (for 4m × 5m × 35m oven)
Diesel Consumption Average 6–10 Ltrs/hr
